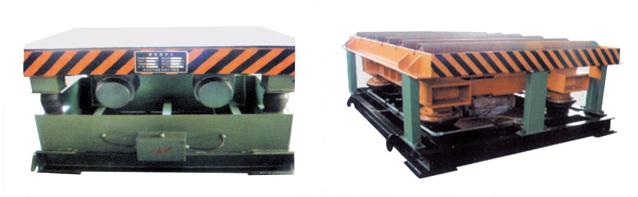

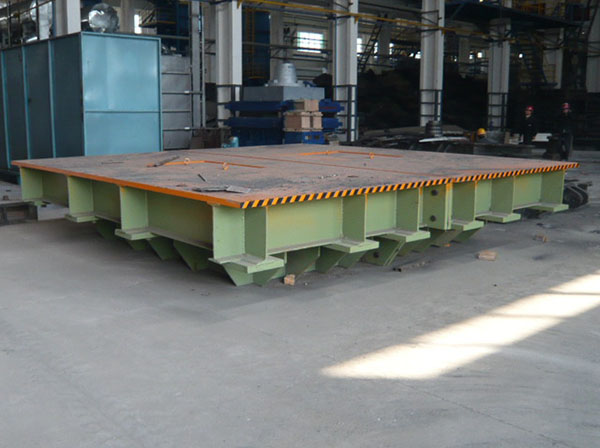

Casting table
First, the main purpose of the equipment: It is used for the tapping of sand in the sand box or core box during casting to obtain the ideal sand tightness. The equipment can be used in a variety of molding applications such as resin sand, water glass sand, clay sand. Second, the working principle of the Zhentai: It is a linear vibration generated by the synchronous rotation of two or more vibrating motors in opposite directions, and the excitation force is transmitted to the sand in the bottom plate, the sand box and the sand box through the table fixedly coupled to the motor, so that the sand together with the sand box Do high frequency and low amplitude vibration. The sand produces relative motion under the action of vibration acceleration, resulting in a compact and uniform sand pattern. Third, the characteristics: During the use of the vibration platform, the vibration of the vibration motor can be adjusted to achieve the desired form of material on the platform. ◆Vibration motor is the excitation source, with low noise, low power consumption and easy maintenance. ◆Simple structure, reliable operation, light weight, small size and easy installation. ◆High power, large countertop; maximum loadable sandbox weight 80T. ◆The height of the table is adjustable, it can be used in a single machine and is also suitable for use on the assembly line. ◆ Suitable for complex cavity castings. ◆Infinitely variable speed, the best tightening effect can be obtained without damaging the model during the modeling process.
